UL Certificate Electrical Insulation Tape , Polyimide Film Silicone Tape For High Voltage Insulation

Polyimide Tapes are made from polyimide film with Silicone adhesive. They have been used in applications at temperatures as low as -269°C (-452°F) and as high as 260°C (500°F). Polyimide films have set the industry standard for over 45 years in high performance, reliability and durability, with a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperature, vibration and other demanding environments. The high dimensional and exceptional tensile strength of polyimide tape allows it to break through cured paint without silvering or tearing.

Common uses for Polyimide Tape include masking parts for powder coating, masking edges of overlap seams, e-coating, electroplating, anodizing and as a barrier of separation for dissimilar metals. It resists shrinking, curling and edge lifting and removes with zero adhesive residue. The thin, flexible backing seals tight on contact, peels off clean and leaves sharp, clear paint edges.

Polyimide films make innovative design solutions possible in a range of industries including, consumer electronics, solar photovoltaic and wind energy, aerospace, automotive and industrial applications. Polyimide Tapes have a high dielectric strength. Silicon adhesive protection leaves no residue.

Custom sizes are available upon request.

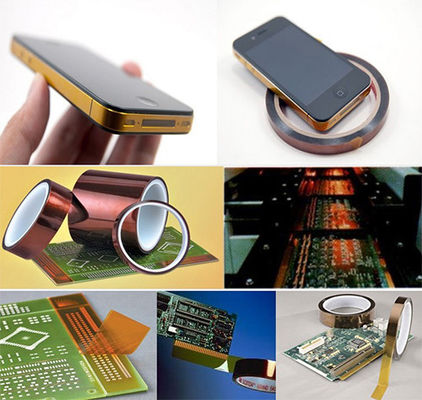

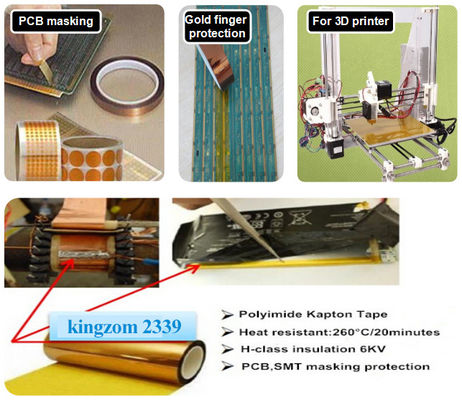

Applications:

High temperature powder coating

Semiconductor manufacturing

Wave soldering during circuit board assembly

Masking edges of overlap seams

Barrier of separation for dissimilar metals

Automotive sensor and manifolds

Insulating circuit boards

Etching

Fiber Optics Cable

Color:

Amber, Black, Transparent

Thickness:

10um~300um acceptable customized

Data sheet

Single sided Polyimide tape with or withour liner.

Double sided Polyimide tape with single liner or double liner.

For special application, thickness, width, length accept customized.
